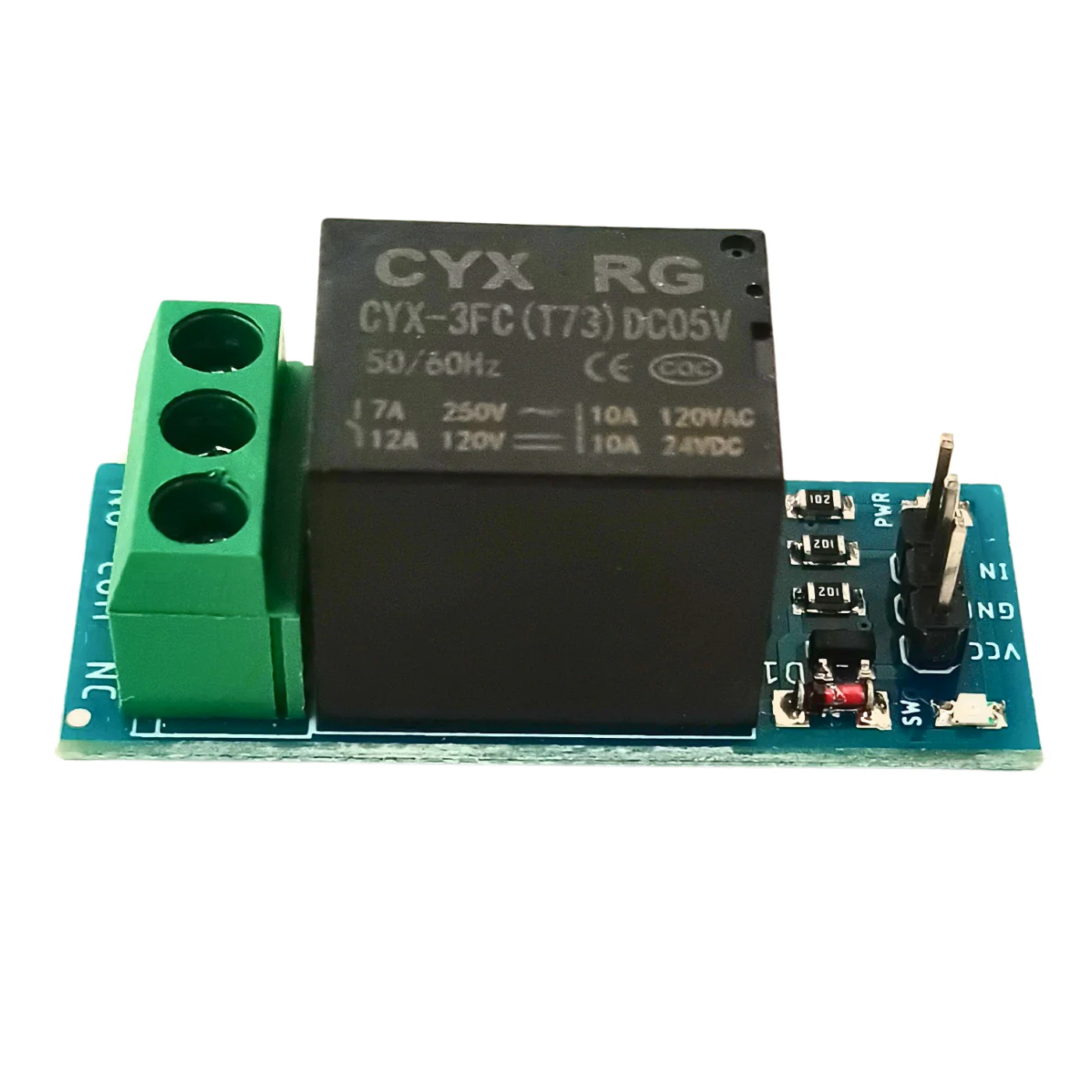

1 Channel 5V Relay Module
10 in stockSingle-channel 5V relay module with optocoupler isolation and LED indicator for controlling one high-power device (10A, 250V AC) with Arduino/Raspberry Pi.
Product Description
The 1 Channel 5V Relay Module is a compact and simple relay board designed to control a single high-power device using a low-power microcontroller signal. Perfect for basic automation projects and simple switching applications. Technical Specifications: - Number of Relays: 1 channel - Control V...
Product Specifications
| - Number of Relays | 1 channel |
| - Control Voltage | 5V DC (from Arduino/Raspberry Pi) |
| - Load Voltage | Up to 250V AC or 30V DC |
| - Load Current | 10A (maximum) |
| - Trigger Type | Active Low (LOW signal activates relay) |
| - Relay Type | Electromechanical relay |
| - Isolation | Optocoupler isolation |
| - Indicator | LED status indicator |
| - Connections | Terminal blocks for load, male headers for control |
| - Dimensions | Compact single-channel module |
| - NO (Normally Open) | Opens when relay OFF, closes when relay ON |
| - NC (Normally Closed) | Closes when relay OFF, opens when relay ON |
| - COM (Common) | Common terminal |
| - VCC | Connect to 5V |
| - GND | Connect to ground |
| - IN | Control signal (connect to digital pin) |
| - Load | Connect between COM and NO/NC |
| Note | Always follow safety guidelines when working with high voltage. |
