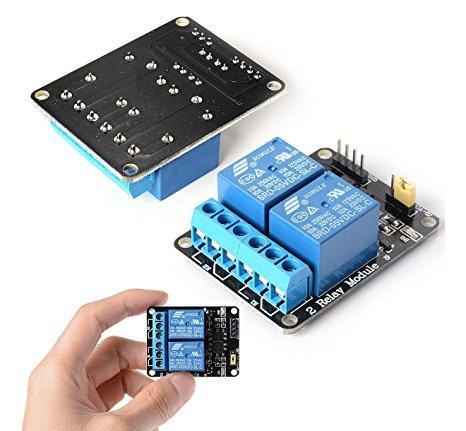

2 Channel 5V Relay Board
10 in stock2-channel 5V relay module with optocoupler isolation and LED indicators for controlling two high-power devices (10A, 250V AC each) with Arduino/Raspberry Pi.
Product Description
The 2 Channel 5V Relay Board is a dual-channel relay module that allows you to control two high-power devices independently using low-power microcontroller signals. Ideal for projects requiring control of multiple devices without the complexity of a 4-channel board. Technical Specifications: - N...
Product Specifications
| - Number of Relays | 2 independent channels |
| - Control Voltage | 5V DC (from Arduino/Raspberry Pi) |
| - Load Voltage | Up to 250V AC or 30V DC per relay |
| - Load Current | 10A per relay (maximum) |
| - Trigger Type | Active Low (LOW signal activates relay) |
| - Relay Type | Electromechanical relay |
| - Isolation | Optocoupler isolation for each channel |
| - Indicators | LED status indicators for each relay |
| - Connections | Terminal blocks for load connections, male headers for control signals |
| - Dimensions | Compact 2-channel module |
| - NO (Normally Open) | Contact is open when relay is OFF, closes when relay is ON |
| - NC (Normally Closed) | Contact is closed when relay is OFF, opens when relay is ON |
| - COM (Common) | Common terminal for both NO and NC contacts |
| - VCC | Connect to 5V from Arduino/Raspberry Pi |
| - GND | Connect to ground |
| - IN1 | Control signal for relay 1 (connect to digital pin) |
| - IN2 | Control signal for relay 2 (connect to digital pin) |
| 6. High | power load is switched ON/OFF |
| - Load 1 | Connect between COM1 and NO1/NC1 |
| - Load 2 | Connect between COM2 and NO2/NC2 |
| Note | Always observe proper safety precautions when working with high voltage. Use appropriate fuses and ensure proper grounding. |
