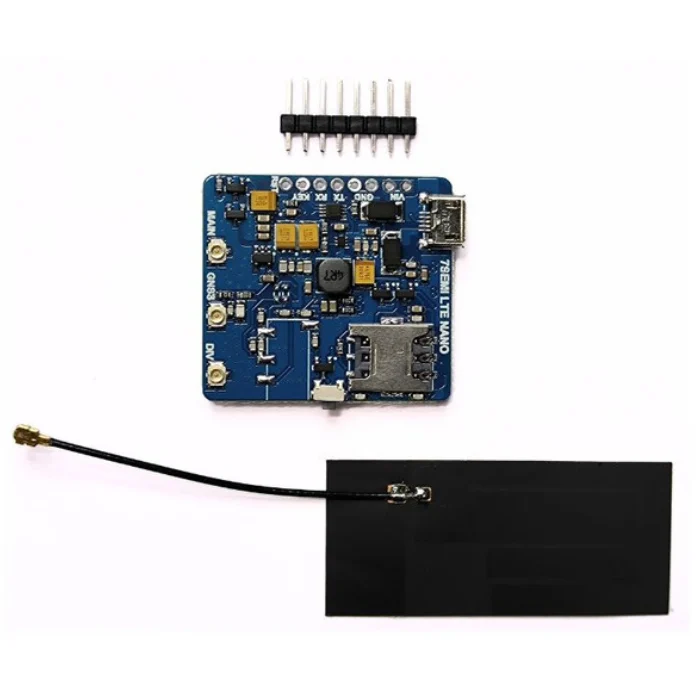

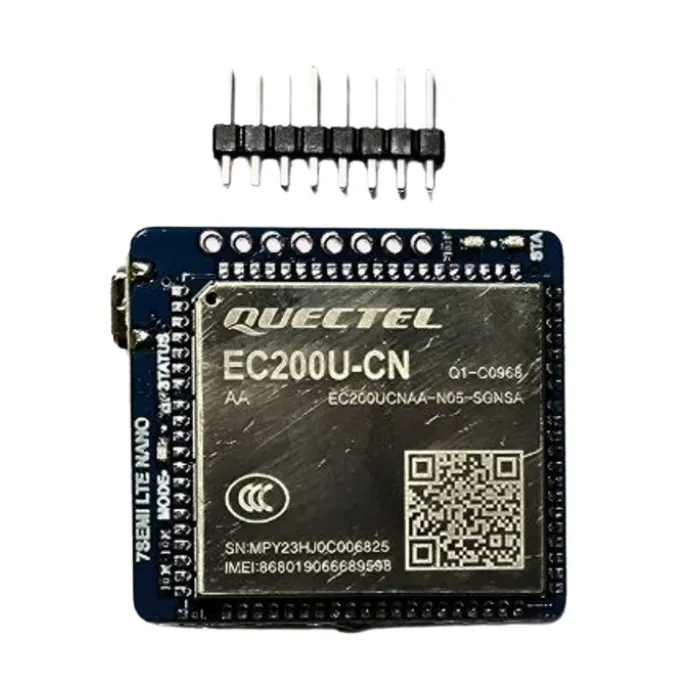

EC200U-CN LTE 4G GNSS Nano Modem (7Semi) GSM
5 in stockCompact 4G LTE modem with built-in GNSS/GPS, perfect for high-speed data communication and location tracking in IoT applications.
1 / 3
Product Description
The EC200U-CN is a compact LTE 4G nano modem with integrated GNSS (GPS) capabilities from 7Semi. This advanced communication module provides high-speed 4G LTE connectivity along with precise location tracking, making it ideal for modern IoT applications, vehicle tracking, and remote monitoring syste...
Advertisement
Product Specifications
| - Network | 4G LTE Cat-4 |
| - GNSS | Built-in GPS/GLONASS/BeiDou/Galileo |
| - Form Factor | Nano modem |
| - Data Speed | Up to 150 Mbps download, 50 Mbps upload |
| - Voice | Full-duplex voice calls |
| - SMS | Text and PDU mode |
| - Interface | AT commands via UART |
| - Power Supply | 3.3V - 4.2V |
| - Operating Temperature | -40°C to +85°C |
| - Dimensions | 24mm x 24mm (approximate) |
| - Weight | ~3g |
| - Antenna | IPEX connector for LTE and GNSS |
| - SIM Card | Nano SIM slot |
