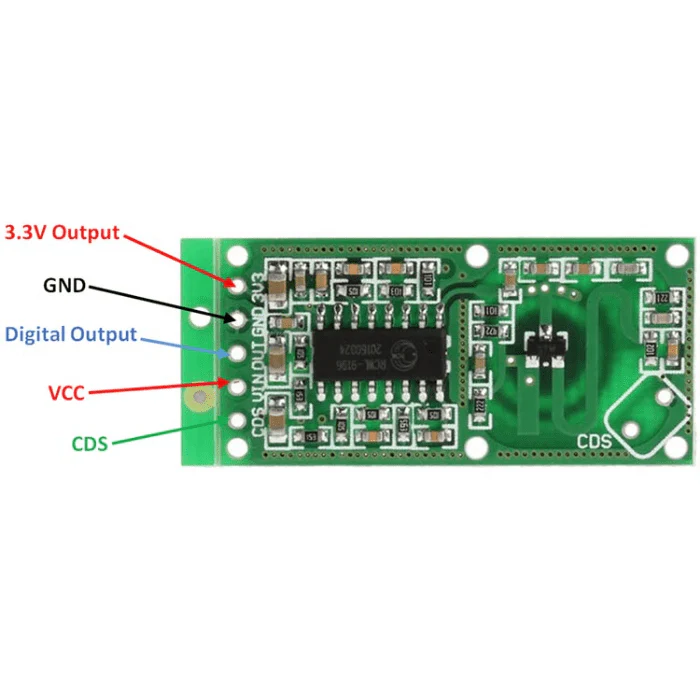

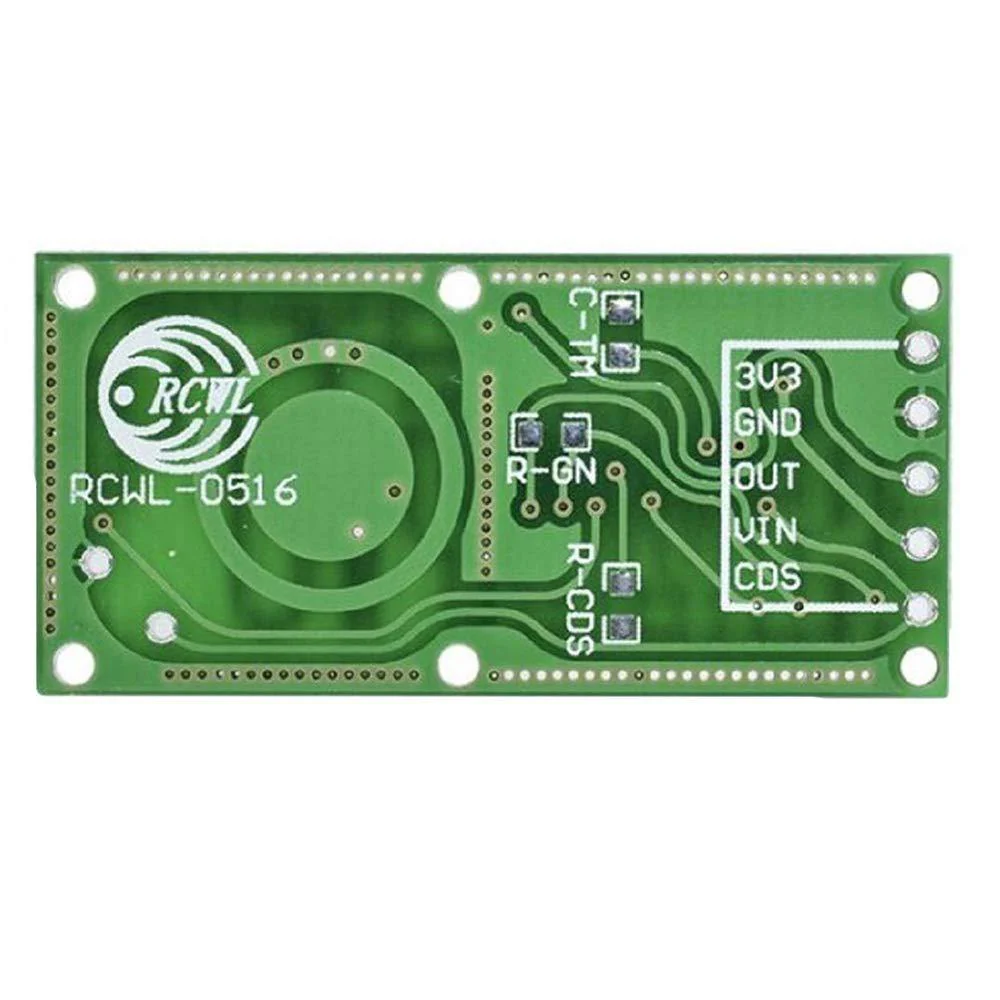

Microwave Radar Human Body Sensor
20 in stockAdvanced microwave radar sensor for human body detection and motion sensing applications.
Product Description
The Microwave Radar Human Body Sensor is an advanced motion detection sensor that uses microwave radar technology to detect human body movement. Unlike PIR sensors, this sensor can detect movement through non-metal materials like glass and thin walls, making it ideal for various smart applications. ...
Product Specifications
| - Operating Voltage | 4.5V to 28V DC |
| - Operating Current | < 3mA (standby), < 8mA (active) |
| - Detection Range | Up to 7 meters (adjustable) |
| - Detection Angle | 360° (omnidirectional) |
| - Frequency | 5.8GHz microwave radar |
| - Output | Digital (HIGH/LOW) or Analog |
| - Response Time | < 0.5 seconds |
| - Working Temperature | -20°C to +60°C |
| - Dimensions | 28mm x 28mm x 8mm |
