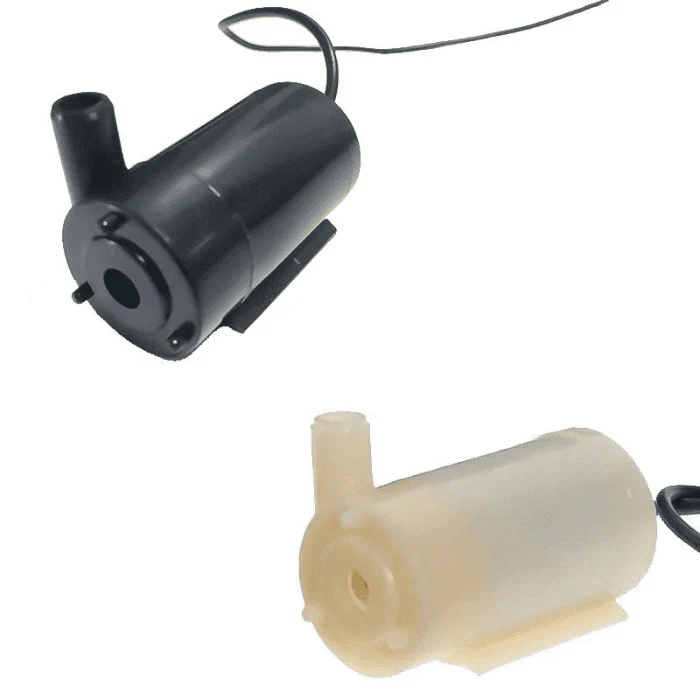

Mini DC Water Pump
10 in stockSmall submersible DC water pump for automatic irrigation, fountains, and DIY water projects.
Product Description
The Mini DC Water Pump is a compact, submersible water pump perfect for small-scale water circulation projects. It's ideal for automatic irrigation systems, decorative fountains, aquariums, and DIY water projects. The pump is easy to use, reliable, and perfect for beginners. Technical Specificati...
Product Specifications
| - Operating Voltage | 3V to 5V DC |
| - Operating Current | ~220mA (at 5V) |
| - Flow Rate | 80 to 120 L/H (liters per hour) |
| - Maximum Lift | 40 to 110 mm (vertical height) |
| - Pump Type | Submersible DC motor pump |
| - Inlet/Outlet | Standard tube fitting (3-4mm inner diameter) |
| - Dimensions | Compact size (varies by model) |
| - Material | Plastic housing with metal impeller |
| - Weight | Lightweight design |
| 1. Connect the pump to a 3V | 5V DC power source |
| 2. Attach a tube pipe to the pump outlet (3 | 4mm inner diameter) |
| - Recommended | Use a transistor or relay module for control |
| - Typical current draw | ~220mA at 5V |
