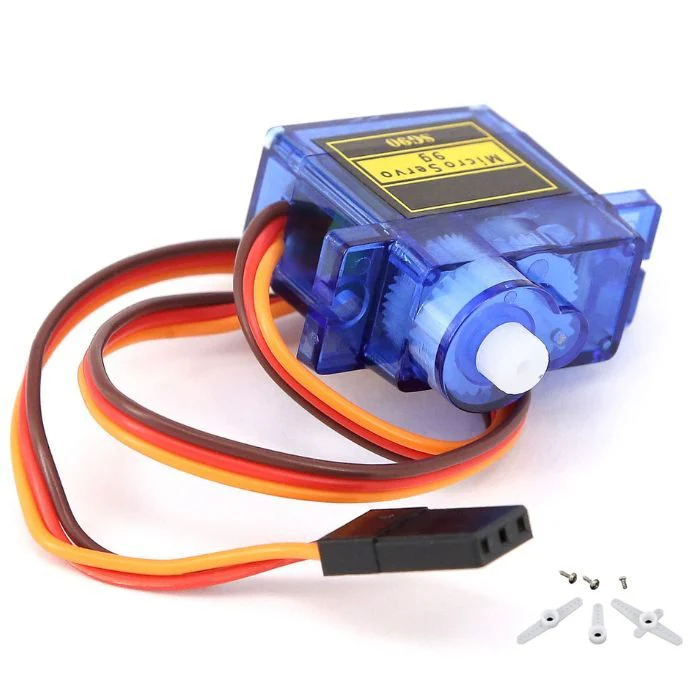

SG90 Micro Servo Motor
80 in stockCompact micro servo motor with 180-degree rotation, perfect for robotics, Arduino projects, and small mechanical applications.
Product Description
The SG90 Micro Servo Motor is a popular, compact servo motor ideal for robotics, Arduino projects, and small mechanical applications. This lightweight servo provides precise position control with 180-degree rotation capability. Key Features: - Micro size and lightweight design - 180-degree rota...
Product Specifications
| - Operating Voltage | 4.8V - 6V (typically 5V) |
| - Stall Torque | 1.8 kg-cm (at 4.8V) / 2.2 kg-cm (at 6V) |
| - Speed | 0.1 sec/60° (at 4.8V) / 0.08 sec/60° (at 6V) |
| - Rotation Range | 180 degrees (±90°) |
| - Control Signal | PWM (Pulse Width Modulation) |
| - Pulse Width | 0.5ms - 2.5ms (1.5ms = center position) |
| - Operating Current | ~100mA (idle), ~500-700mA (under load) |
| - Dimensions | 23mm × 12.2mm × 29mm |
| - Weight | ~9g |
| - Connector | 3-pin female connector |
