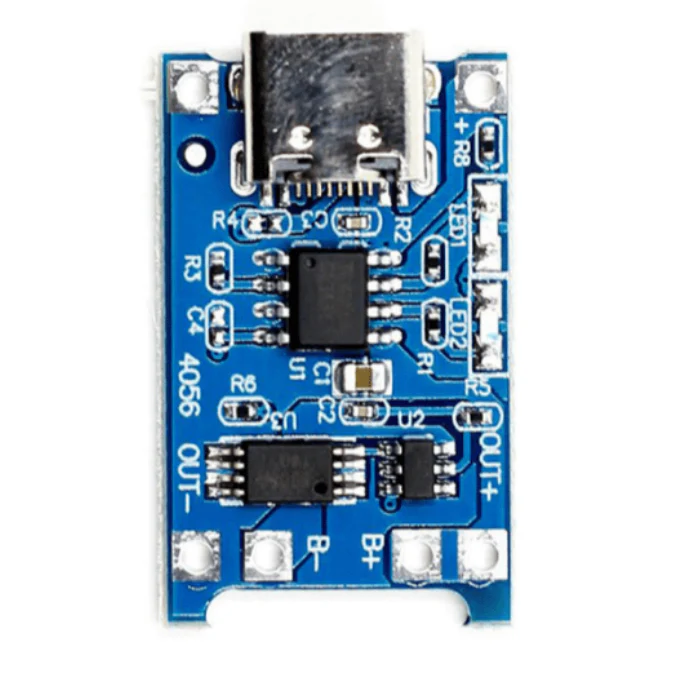

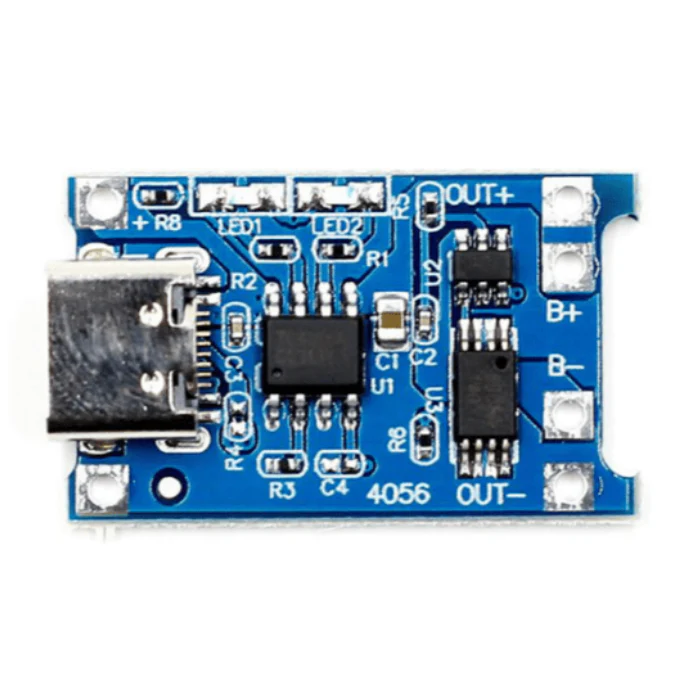

TP4056 Battery Charger C Type Module with Protection
10 in stockUSB-C TP4056 lithium battery charger module with overcharge, over-discharge, and short-circuit protection for 18650 and other Li-ion batteries.
Product Description
The TP4056 Battery Charger Module with USB-C connector is a complete charging solution for single-cell lithium-ion batteries (3.7V). It features built-in protection circuitry to ensure safe charging and discharging of your batteries. Technical Specifications: - Input: USB-C (5V, 1A recommended) ...
Product Specifications
| The TP4056 Battery Charger Module with USB | C connector is a complete charging solution for single-cell lithium-ion batteries (3.7V). It features built-in protection circuitry to ensure safe charging and discharging of your batteries. |
| - Input | USB-C (5V, 1A recommended) |
| - Output | 4.2V (for 3.7V Li-ion batteries) |
| - Charging Current | 1A (adjustable via resistor) |
| - Battery Compatibility | 3.7V Li-ion (18650, 14500, 10440, etc.) |
| - Charging Indicator | Red LED (charging), Blue LED (charged) |
| - Dimensions | ~26mm x 17mm |
| - Chip | TP4056 + DW01A protection IC |
| 1. Connect USB | C cable to power source (5V) |
| - Overcharge Protection | Stops charging at 4.2V ± 0.05V |
| - Over-discharge Protection | Cuts off at 2.4V ± 0.1V |
| - Over-current Protection | Limits discharge current |
| - Short-circuit Protection | Prevents damage from shorts |
| - Reverse Polarity Protection | Prevents damage from wrong connection |
| - B+ / B- | Connect to battery positive and negative |
| - OUT+ / OUT- | Connect to your load (device to power) |
| - USB-C | Connect to 5V power source |
