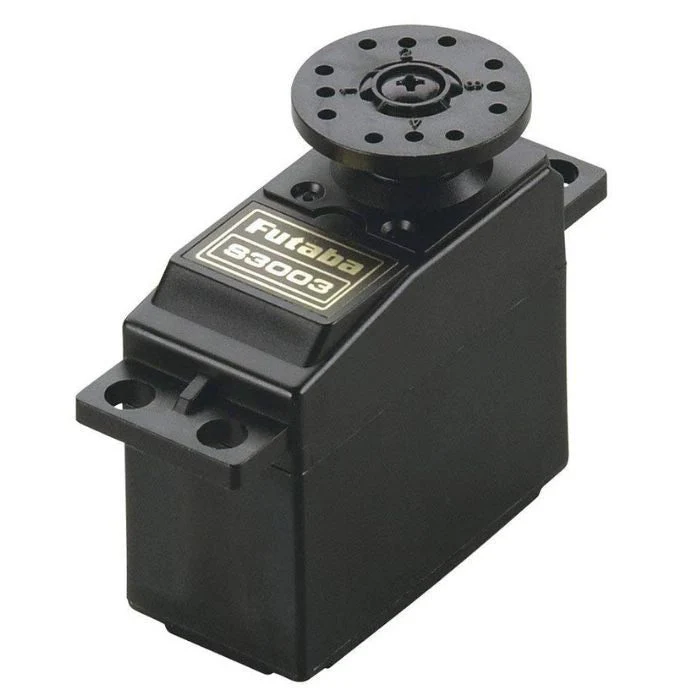

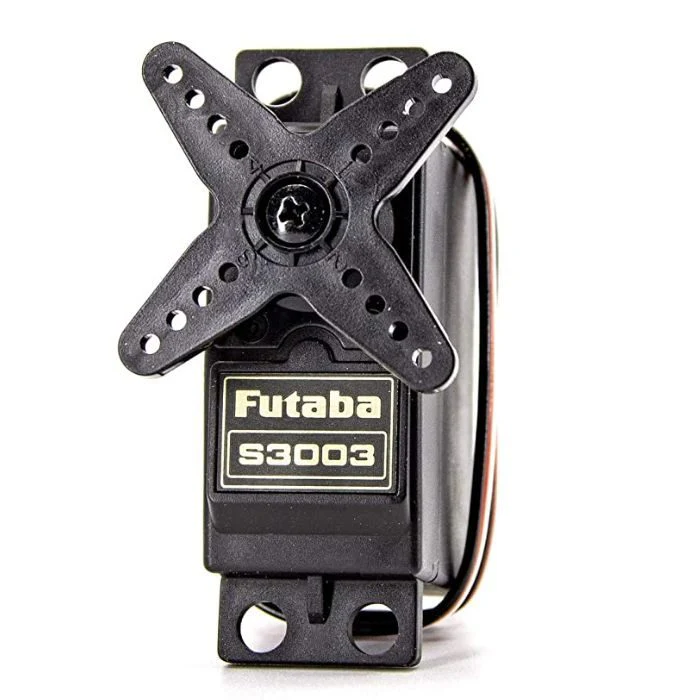

Futaba S3003 Servo Motor (3.2kg-cm)
35 in stockStandard servo motor with 3.2kg-cm torque, perfect for robots, Arduino projects, and medium-duty mechanical applications.
Product Description
The Futaba S3003 is a reliable standard servo motor with 3.2kg-cm torque, making it ideal for robotics, Arduino projects, and medium-duty mechanical applications. This servo provides excellent performance and durability for various automation and robotics projects. Key Features: - Standard servo...
Product Specifications
| - Operating Voltage | 4.8V - 6V (typically 5V) |
| - Stall Torque | 3.2 kg-cm (at 4.8V), 4.1 kg-cm (at 6V) |
| - Speed | 0.23 sec/60° (at 4.8V), 0.19 sec/60° (at 6V) |
| - Rotation Range | 180 degrees (±90°) |
| - Control Signal | PWM (Pulse Width Modulation) |
| - Pulse Width | 1.0ms - 2.0ms (1.5ms = center position) |
| - Operating Current | ~100-150mA (idle), ~1A+ (under load) |
| - Dimensions | 40.4mm × 19.8mm × 36mm |
| - Weight | ~37g |
| - Connector | 3-pin female connector (Futaba/JR compatible) |
