Color Recognition Sensor Module TCS3200D/TCS2300
10 in stockA compact colour-sensor module based on the TCS3200 / TCS230 chip-family: detects colours by converting light intensity of red/green/blue components to a frequency output, compatible with Arduino and other microcontrollers.
Product Description

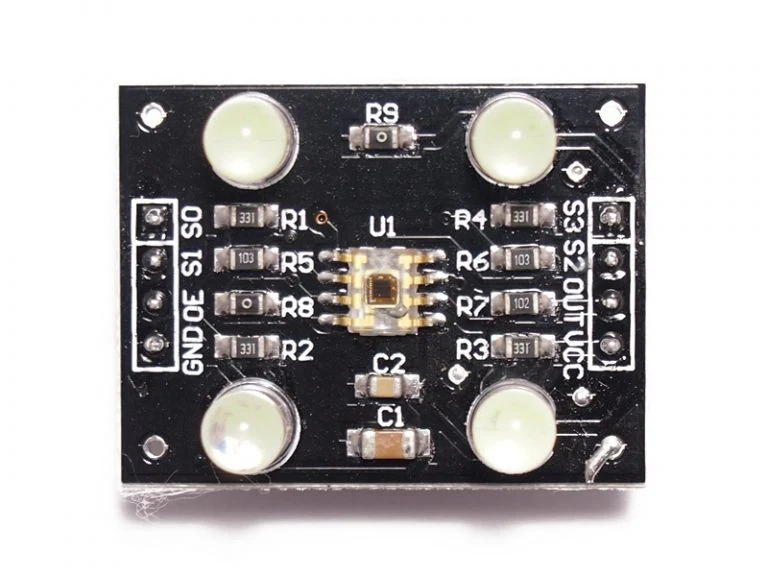

The module incorporates the TCS3200 (or TCS230) colour-sensor IC along with supporting circuitry and four white LEDs to provide illumination of the object under test. According to the product listing: It uses the sensor IC’s photodiode array (with separate red, green, blue and no-filter (clear) p...
Product Specifications
| Supply voltage | .7 V to 5.5 V typical (some module listings say 3V-5V) |
| Interface | Digital output: square wave whose frequency ∝ light intensity of selected photodiode array (red/green/blue/clear) |
| Photodiode array | 8×8 (64) photodiodes: 16 red, 16 green, 16 blue, 16 clear (for TCS3200) |

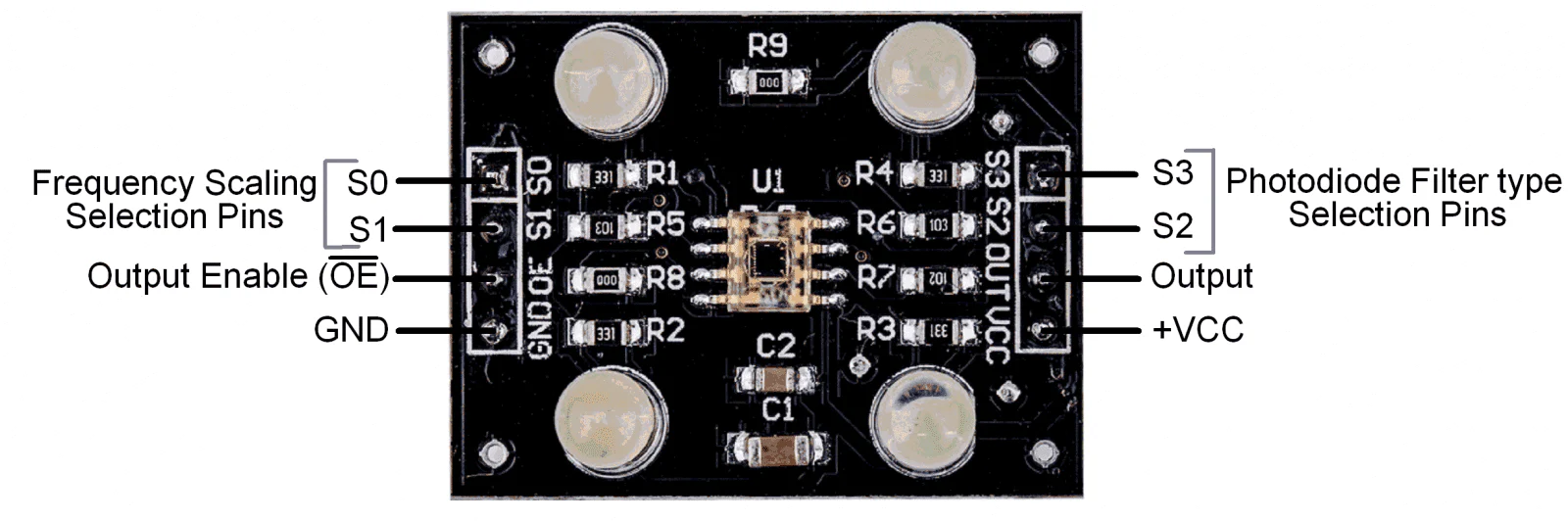

| Output frequency scaling | S0/S1 control: L/L → power down; L/H → 2% scale; H/L → 20%; H/H → 100% scale |
| Photodiode‐type selection | S2/S3 control: L/L red; L/H blue; H/L clear; H/H green |
| Operating temperature | -40 °C to +85 °C (data sheet) |
| Typical full‐scale frequency | For 5 V supply: S0=H, S1=H → ~500-600 kHz typical for full scale. For scaled versions 100 kHz (20 %), 10-12 kHz (2 %) (per data sheet) |
| Module dimensions | One listing: 3 × 2 × 1 cm approx. |
| Module weight | ~5 grams |
Related Components
Similar components you might be interested in
12A 300W DC-DC Buck Converter Step Down Power Module 7-32V to 0.8-28V
High-power step-down converter module, 7-32V input to 0.8-28V adjustable output, 12A max current, 300W max power, up to 95% efficiency.
₹349.00
Futaba S3003 Servo Motor (3.2kg-cm)
Standard servo motor with 3.2kg-cm torque, perfect for robots, Arduino projects, and medium-duty mechanical applications.
₹349.00
NEO-6M GPS Module
Ublox Neo-6M GPS module with EEPROM, external antenna, and UART TTL interface for accurate positioning and navigation.
₹329.00

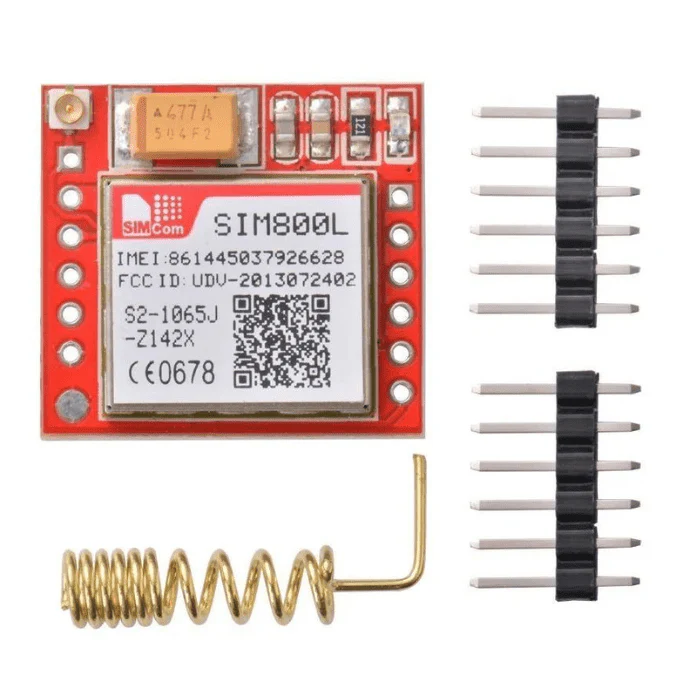

SIM800L GSM GPRS Module
