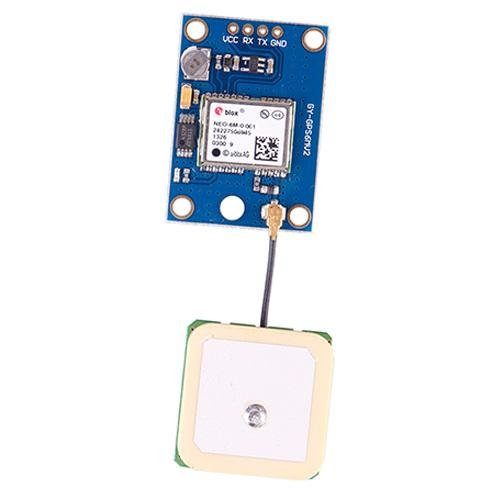

NEO-6M GPS Module
40 in stockUblox Neo-6M GPS module with EEPROM, external antenna, and UART TTL interface for accurate positioning and navigation.
Product Description
The NEO-6M GPS Module is a fully functional GPS module based on the Ublox Neo-6M chipset. This module utilizes the latest Ublox technology to provide accurate positioning data, making it ideal for navigation, tracking, and location-based applications. Key Features: - Ublox Neo-6M GPS chipset - ...
Product Specifications
| - Chipset | Ublox Neo-6M |
| - Interface | UART TTL (3.3V/5V compatible) |
| - Antenna | External GPS antenna included |
| - EEPROM | Built-in for configuration storage |
| - Update Rate | Configurable (up to 5Hz) |
| - Accuracy | 2.5m CEP (Circular Error Probable) |
| - Sensitivity | -161 dBm tracking, -160 dBm acquisition |
| - Operating Voltage | 3.3V - 5V |
| - Current Consumption | ~45mA during operation |
| - Operating Temperature | -40°C to +85°C |
