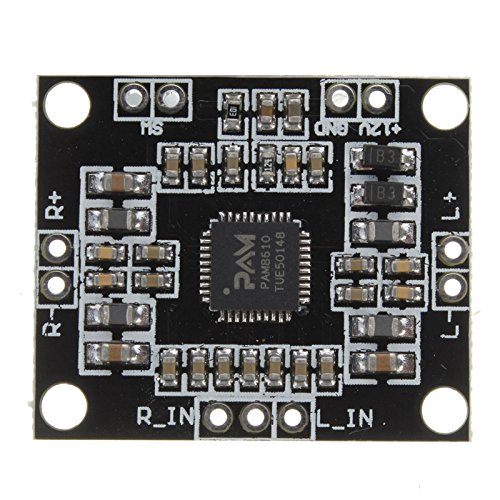

PAM8610 Digital Amplifier Board
10 in stockStereo digital amplifier board with PAM8610 chip, providing high-quality audio amplification for portable speakers, DIY audio projects, and multimedia applications.
Product Description
The PAM8610 Digital Amplifier Board is a compact stereo amplifier module based on the PAM8610 Class-D audio amplifier IC. This board provides efficient, high-quality audio amplification for portable speakers, DIY audio projects, and multimedia applications. Technical Specifications: - Amplifier ...
Product Specifications
| - Amplifier Chip | PAM8610 |
| - Channel Configuration | Stereo (2 channels) |
| - Power Output | 2x 10W (into 4 ohm load) or 2x 7W (into 8 ohm load) |
| - Speaker Impedance | 4-8 ohms |
| - Supply Voltage | 8-15V DC |
| - Input | Audio input via header pins or connector |
| - Amplifier Type | Class-D digital amplifier |
| - Efficiency | High efficiency (>85%) |
| - THD+N | Low total harmonic distortion |
| - Frequency Response | 20Hz - 20kHz |
| - Dimensions | Compact module size |
| 3. Class | D amplification (PWM switching) |
| 4. High | efficiency power output |
| - Power | Connect 8-15V DC power supply |
| - Audio Input | Connect audio source to input pins |
| - Speakers | Connect left and right speakers (4-8 ohm) |
| - Ground | Common ground connection |
| Note | Requires 8-15V DC power supply. Use 4-8 ohm speakers for optimal performance. |
