WS2812 64-Bit RGB LED Matrix (8x8)
10 in stock8x8 RGB LED matrix with WS2812 addressable LEDs for colorful displays, animations, and lighting effects.
Product Description

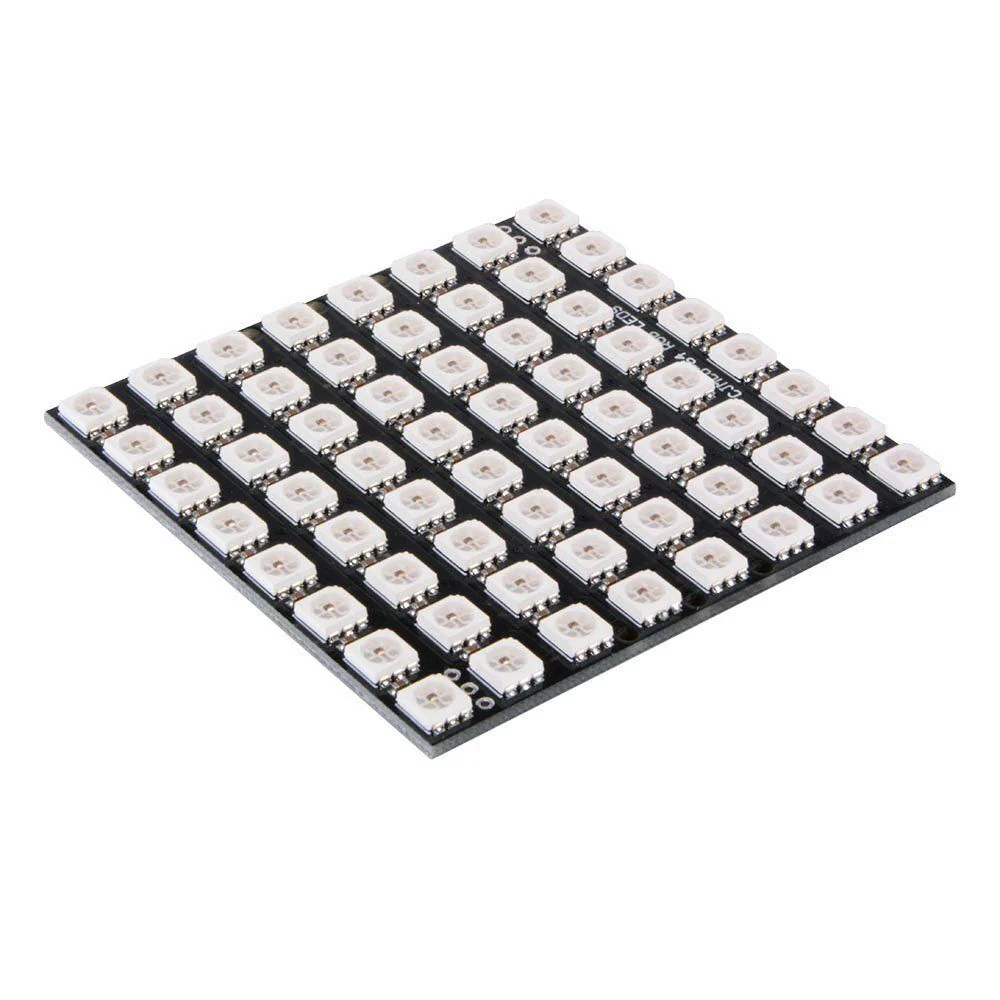

The WS2812 64-Bit RGB LED Matrix is an 8x8 RGB LED matrix composed of WS2812 addressable LEDs, each with an integrated driver. This allows individual control of each LED's color and brightness, making it perfect for creating colorful displays, animations, and dynamic lighting effects. Technical S...
Product Specifications
| - Operating Voltage | 5V DC |
| - Operating Current | ~400mA (all LEDs at full brightness white) |
| - Display | 8x8 RGB LED matrix (64 LEDs total) |
| - LED Type | WS2812B (addressable RGB LED) |
| - Interface | Single-wire serial data |
| - Data Protocol | WS2812 protocol (800kHz) |
| - Color Depth | 24-bit (8-bit per color: Red, Green, Blue) |
| - Brightness | 256 levels per color |
| - Refresh Rate | Up to 400Hz |
| - Dimensions | ~65mm x 65mm |
| - LED Pitch | ~8mm |

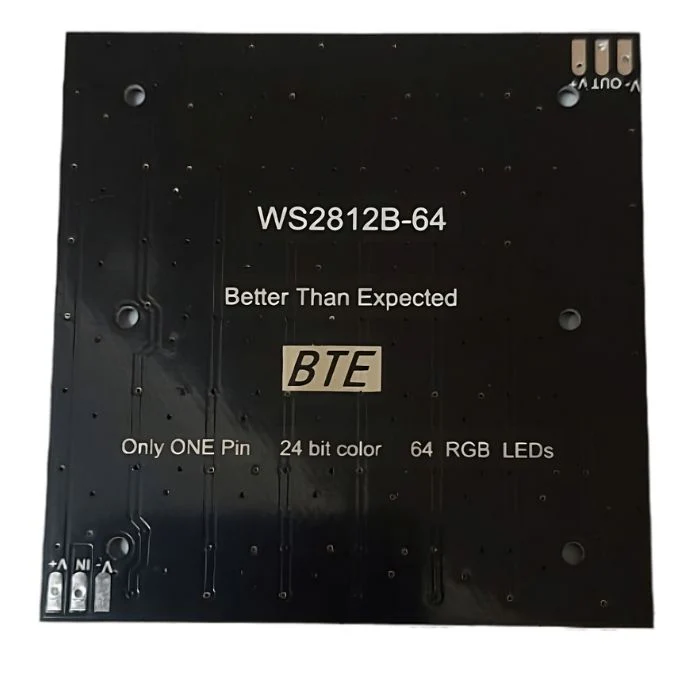

| - VCC | 5V power supply (use external supply for full brightness) |
| - GND | Ground |
| - DIN | Data input (connect to microcontroller digital pin) |
| - DOUT | Data output (for cascading to next matrix) |
| - Each LED | ~60mA at full brightness white |
| - All 64 LEDs white | ~3.8A (use external 5V supply) |
| - Typical usage | 1-2A depending on colors and brightness |
| - Arduino | FastLED library, NeoPixel library |
| - ESP32 | FastLED library, NeoPixel library |
| - Raspberry Pi | rpi_ws281x library |
